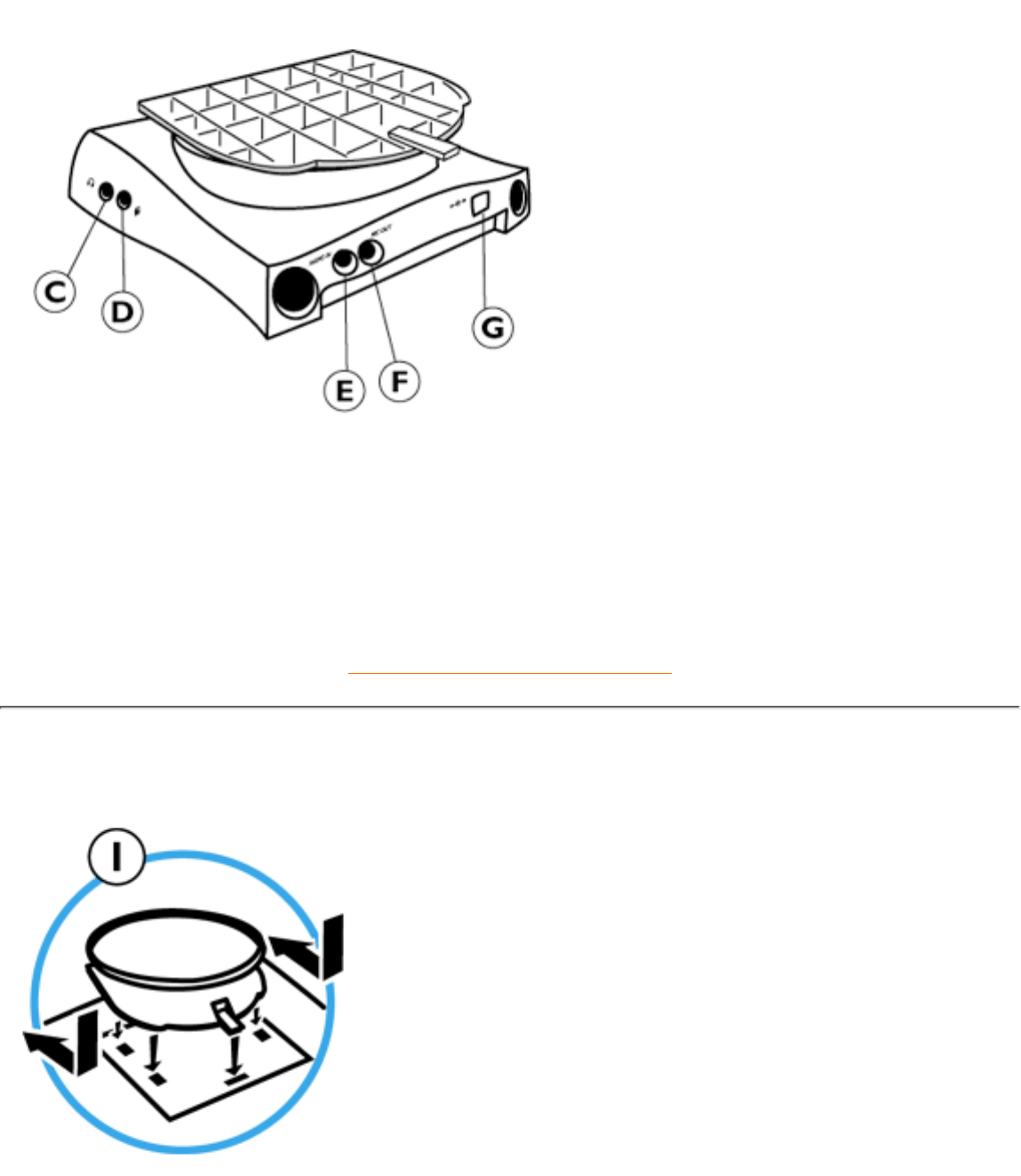

D. Microphone jack

Attach your microphone here.

E. Audio In

Connect this to the audio

output of your PC.

F. MIC Out

Connect this to the microphone

output of your PC.

G. DC Input

Connect power input here.

RETURN TO TOP OF THE PAGE

Installing your Multimedia Pedestal

1. To INSTALL

Slide the pedestal, aligning with the holes on the

side.

●

Then click the back hook into the corresponding

hole on the bottom plate of your monitor.

●

6G3B11 Multimedia Base (option)
